Water-Based Nano Silver Conductive Paste Silver Concentration: 80–85% Base Solvent: Water
₹1475.00

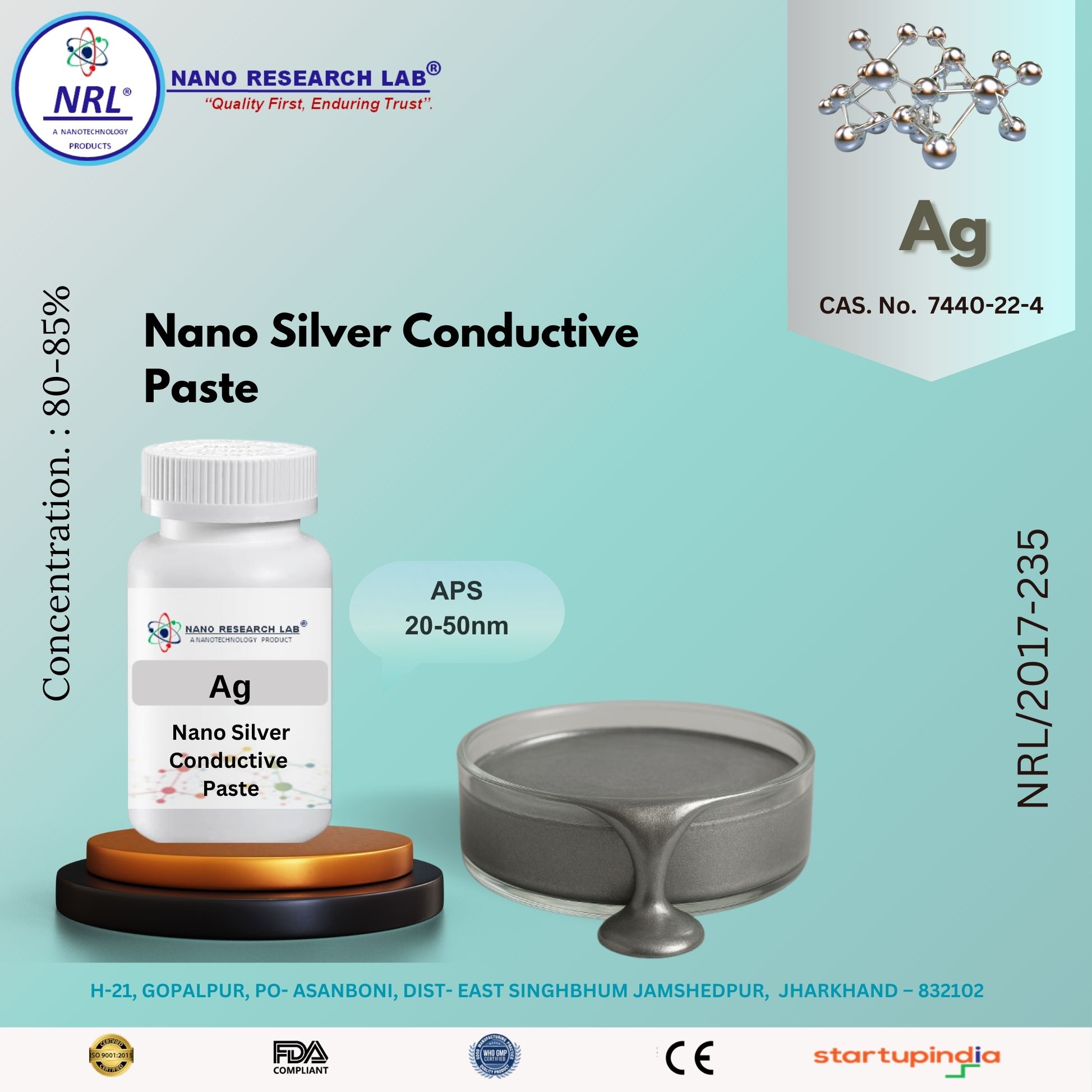

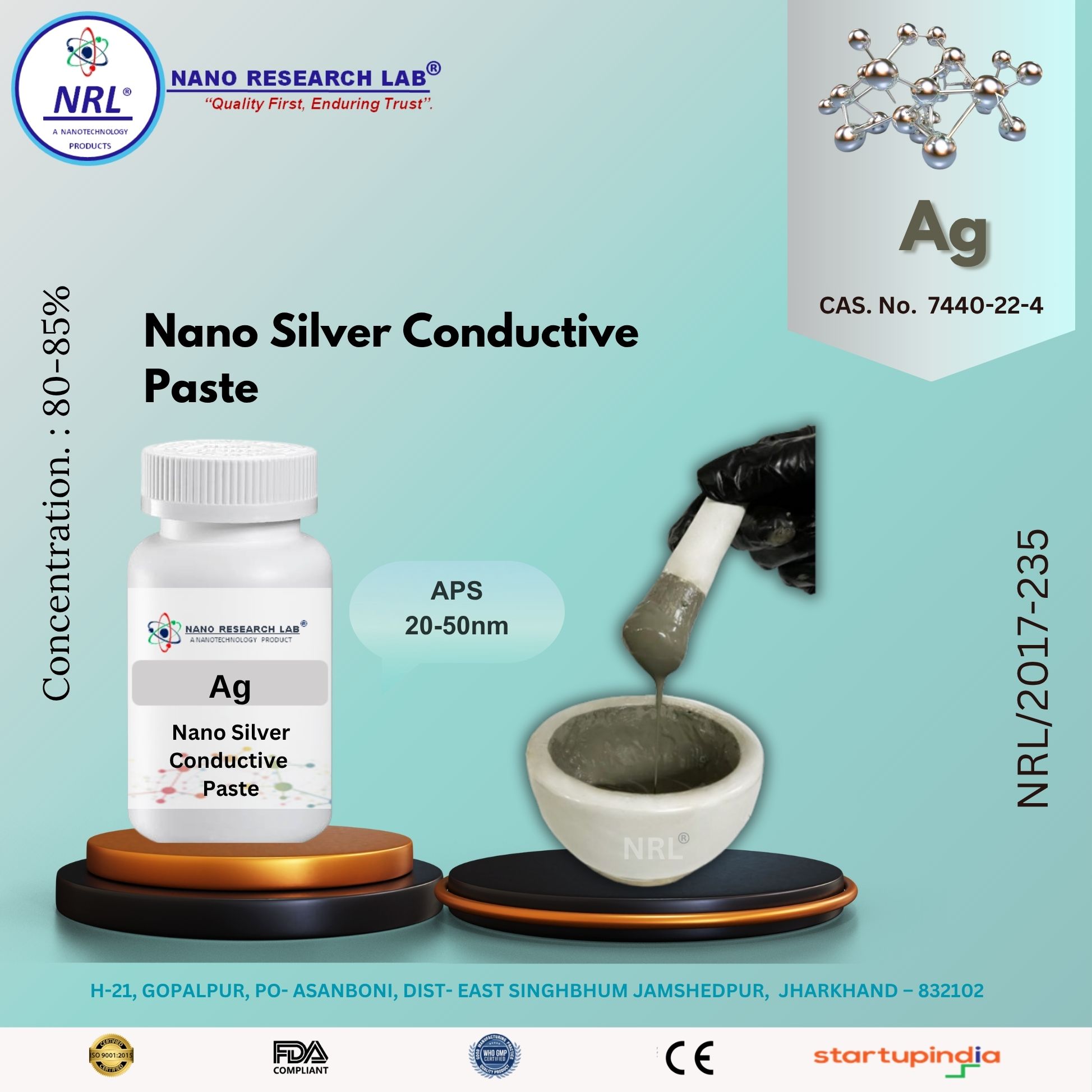

🧪 Water-Based Nano Silver Conductive Paste
Silver Concentration: 80–85%
Base Solvent: Water
⚙️ Technical Specifications
Property | Specification |
|---|---|
Material Name | Water-Based Nano Silver Conductive Paste |
Composition | Silver nanoparticles in aqueous dispersion |
Silver Content | 80–85 wt% |
Particle Size | 20–50 nm (typical) |
Appearance / Color | Grey-silver viscous paste |
Viscosity | 20,000–80,000 cP (typical, adjustable) |
Drying / Sintering Temp | 80–200 °C (depending on substrate) |
Electrical Resistivity | <15 μΩ·cm (after proper sintering) |
pH | 6–8 |
Density | ~3.7–4.0 g/cm³ |
Storage Conditions | Store in sealed container at 2–25 °C, away from sunlight and freezing |
🌟 Key Features
High-purity silver nanoparticles (80–85%) for excellent conductivity
Water-based formulation: eco-friendly, low VOC, and easy to handle
Uniform particle dispersion for smooth, defect-free coatings
Low-temperature sintering compatible with flexible and sensitive substrates
Excellent adhesion to ceramics, glass, polymers, and metals
Ideal for printed electronics and sensor applications
🔬 Applications
Printed Electronics
Flexible circuits, RFID antennas, touch panels, sensors
Solar Cells & Photovoltaics
Front and back contacts for solar cells
Conductive Coatings
EMI shielding, printed heaters, transparent conductive layers
MEMS & Microelectronics
Interconnects, bonding, and surface mount devices
Research & Development
Nanotechnology and advanced material experiments
⚠️ Handling & Storage
Store in a sealed container at 2–25 °C, away from freezing and direct sunlight
Use gloves, protective eyewear, and lab coat during handling
Avoid inhalation or skin contact; handle in well-ventilated areas
Stir gently before use to ensure homogeneous dispersion
