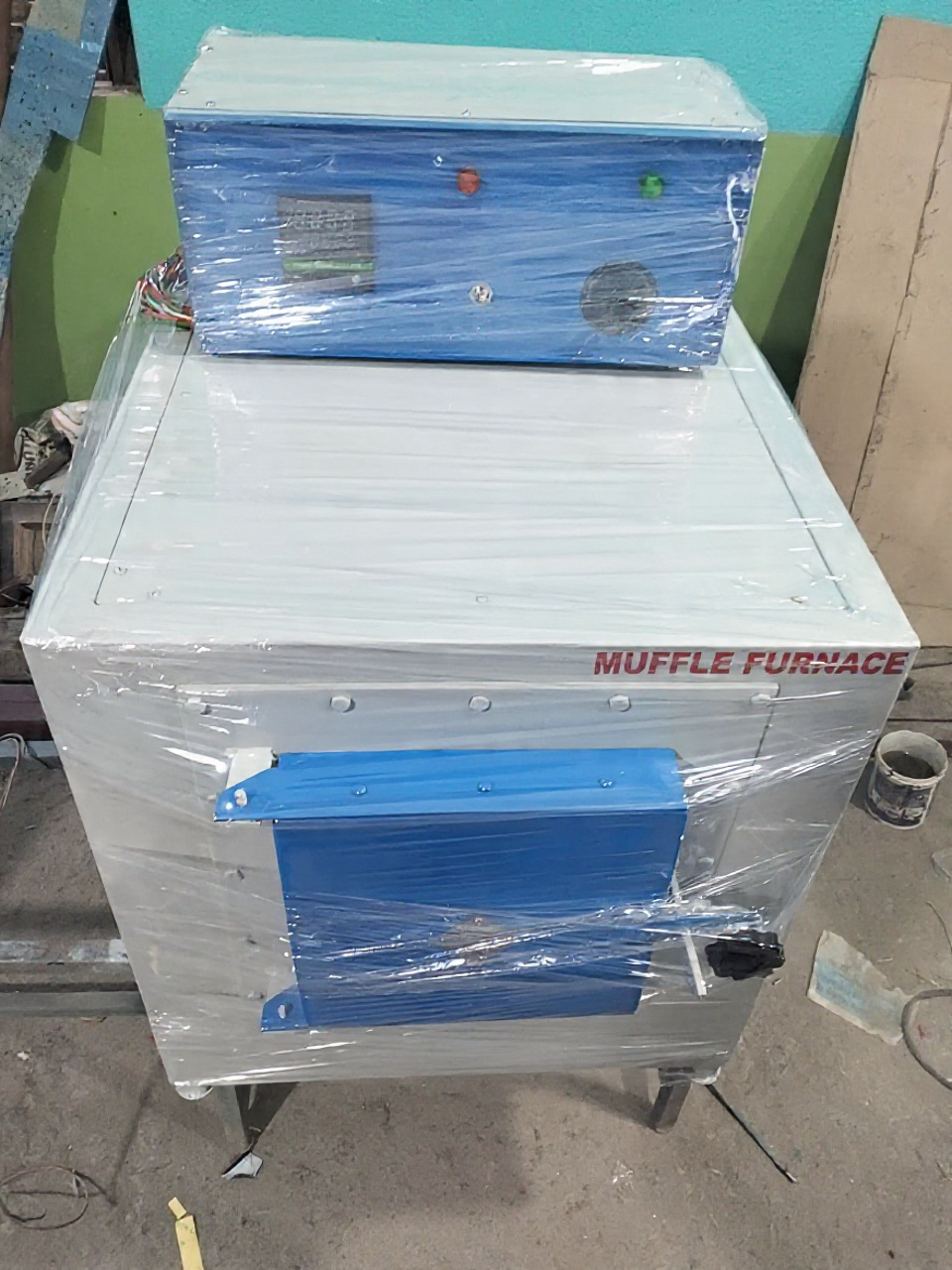

Muffle Furnace-18"x9"x9", 1200°C Max Temperature and working temperture approx 700-900 °C
₹85700.00
Muffle Furnace – 18" × 9" × 9" | 1200°C High-Temperature Laboratory Furnace
🔥 Product Overview
Our 1200°C Muffle Furnace (18×9×9 Inch) is a high-performance laboratory furnace designed for reliable, consistent, and precise heat treatment. Ideal for research labs, industrial testing, ceramic processing, and metallurgical applications, this furnace delivers excellent thermal efficiency and long service life.
✨ Key Features
High Temperature Capacity:
Maximum temperature 1200°C, with a stable working range of 700–900°C for continuous operations.Large Chamber Size:
18" (L) × 9" (W) × 9" (H) – suitable for medium-scale laboratory and industrial loads.Advanced PID Temperature Control:
Ensures accurate temperature regulation with ±1–3°C precision, dual display, and over-temperature protection.Efficient Heating Elements:
High-grade Kanthal A1 or Silicon Carbide (SiC) elements for fast heating and long life.Premium Insulation:
Low thermal-loss ceramic fiber / high-alumina refractory ensures energy savings and uniform temperature distribution.Durable Construction:
Heavy-duty powder-coated MS body with robust front-opening insulated door for safe operation.Energy Efficient:
Approximately 4–6 kW consumption with optimized heat retention.
📦 Technical Specifications
Specification | Details |
|---|---|
Chamber Size | 18" × 9" × 9" |
Max Temperature | 1200°C |
Working Temperature | 700–900°C |
Controller | Digital PID |
Voltage | 220–230V AC, 50Hz |
Power Consumption | 4–6 kW (approx.) |
Heating Rate | 4–10°C/min |
Accuracy | ±1–3°C |
🎯 Applications
Heat treatment & annealing
Ash content determination
Ceramic sintering
Metallurgical analysis
Material testing & research
Chemical degradation studies
💎 Why Choose This Furnace?
Reliable long-term performance
Safe and stable operation
Energy-efficient design
Ideal for labs, industries, and educational institutions
Low maintenance & high durability
